Demo example: filling gaps#
This example serves as a demonstration of how to fill gaps. We demonstrate this for temperature observations. First we import the demo data, then we introduce some gaps in them, and as a last step the gaps are filled.
[1]:
import metobs_toolkit
dataset = metobs_toolkit.Dataset() #Create a new dataset object
#Load the data
dataset.import_data_from_file(
template_file=metobs_toolkit.demo_template, #The template file
input_data_file=metobs_toolkit.demo_datafile, #The data file
input_metadata_file=metobs_toolkit.demo_metadatafile, #The metadata file
)
Luchtdruk is present in the datafile, but not found in the template! This column will be ignored.
Neerslagintensiteit is present in the datafile, but not found in the template! This column will be ignored.
Neerslagsom is present in the datafile, but not found in the template! This column will be ignored.
Rukwind is present in the datafile, but not found in the template! This column will be ignored.
Luchtdruk_Zeeniveau is present in the datafile, but not found in the template! This column will be ignored.
Globe Temperatuur is present in the datafile, but not found in the template! This column will be ignored.
The following columns are present in the data file, but not in the template! They are skipped!
['Globe Temperatuur', 'Neerslagintensiteit', 'Neerslagsom', 'Luchtdruk_Zeeniveau', 'Rukwind', 'Luchtdruk']
The following columns are found in the metadata, but not in the template and are therefore ignored:
['benaming', 'stad', 'Network', 'sponsor']
Identifying gaps#
As was shown in the introduction notebook, gaps are constructed when:
raw data is imported
resample()orDataset.sync_records()is applied

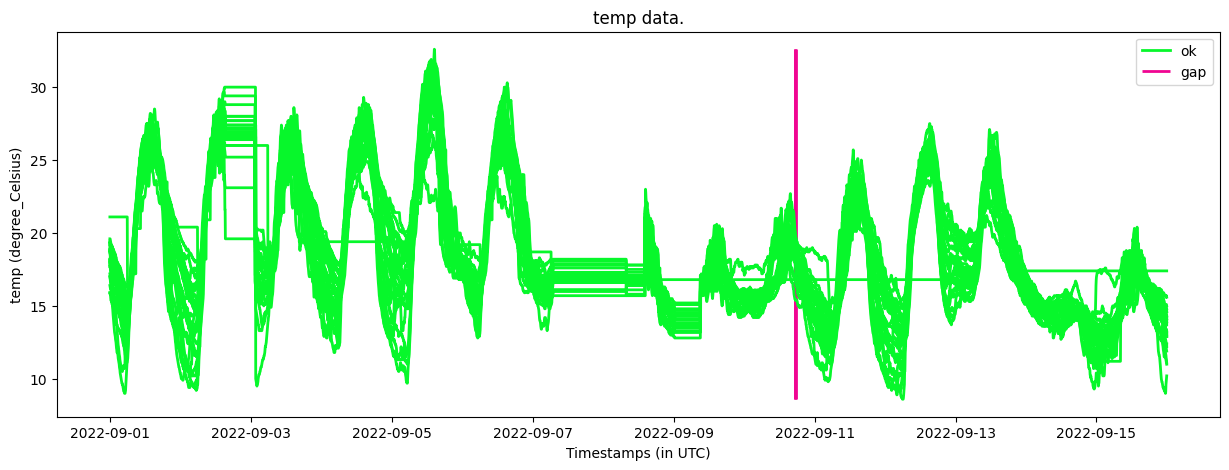

And we can inspect the gaps by plotting timeseries with make_plot(colorby='label'), or via the dataframe attribute gapsdf. Both methods work on Dataset-level as on Station-level.
[2]:
dataset.make_plot(obstype='temp', colorby='label')
[2]:
<Axes: title={'center': 'temp data.'}, xlabel='Timestamps (in UTC)', ylabel='temp (degree_Celsius)'>
As can be seen in the plot, the number of gaps is rather limited. But it is clear that there are some issues with the observations. A common approach is to apply a quality control (QC) pipeline, and interpret the outliers as gaps.
In the toolkit we can run a QC pipeline, see the QC introduction, and then use the .convert_outliers_to_gaps() method to convert them to gaps. This is another method to introduce gaps in the dataset.
[3]:
#Apply quality control on temperature (source: the QC introduction)
target = 'temp'
#Resampling
dataset.resample(target_freq='10min')
#1. gross value check
dataset.gross_value_check(
target_obstype=target,
lower_threshold=-10.0,
upper_threshold=26.3)
#2. persistence check
dataset.persistence_check(
target_obstype=target,
timewindow='60min',
min_records_per_window=3)
#3. repetitions check
dataset.repetitions_check(
target_obstype=target,
max_N_repetitions=5
)
#4. repetitions check
dataset.step_check(
target_obstype=target,
max_increase_per_second = 8.0 / 3600.0, #depends on standard unit!
max_decrease_per_second = -10.0 / 3600.0) #depends on standard unit!
#5. window variation check
dataset.window_variation_check(
target_obstype=target,
timewindow='60min',
min_records_per_window=3,
max_increase_per_second=8.0 / 3600.0, #depends on standard unit!
max_decrease_per_second = -10.0 / 3600.0, #depends on standard unit!
)
#6. buddy check
dataset.buddy_check(
target_obstype=target,
#main check settings
buddy_radius=15000, #15km definition of buddy radius
std_threshold=2.0, #outlier threshold
#requirements
min_sample_size=5,
max_alt_diff=None, # Maximum elevation difference between stations
N_iter=3, #Number of iterations
instantanious_tolerance='4min', #Max timestamp tolerance for 'at the same time'
lapserate=None, #Specify the variation with altitude, if None no correction is applied
min_std=1.0, # Minimum standart deviation
)

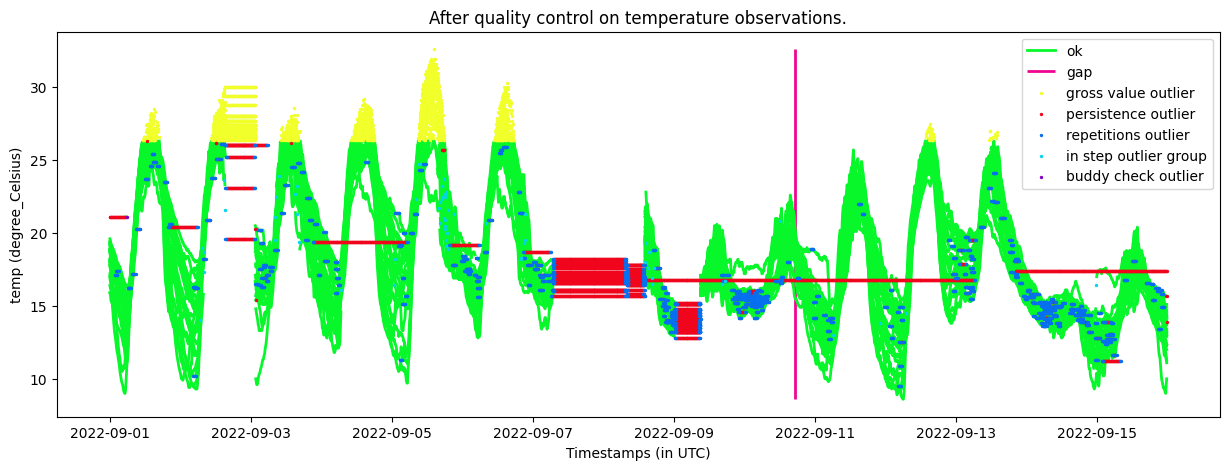

dataset.make_plot(obstype='temp',
colorby='label',
title='After quality control on temperature observations.')
WARNING:<metobs_toolkit>:The present gaps are removed, new gaps are constructed for temp data of station vlinder02..
WARNING:<metobs_toolkit>:The present gaps are removed, new gaps are constructed for humidity data of station vlinder02..
WARNING:<metobs_toolkit>:The present gaps are removed, new gaps are constructed for wind_speed data of station vlinder02..
WARNING:<metobs_toolkit>:The present gaps are removed, new gaps are constructed for wind_direction data of station vlinder02..
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/Documents/VLINDER_github/MetObs_toolkit/metobs_toolkit/qc_collection/repetitions_check.py:61: FutureWarning: When grouping with a length-1 list-like, you will need to pass a length-1 tuple to get_group in a future version of pandas. Pass `(name,)` instead of `name` to silence this warning.
[groups.get_group(outlgroup) for outlgroup in outlier_groups.index]
/home/thoverga/anaconda3/envs/metobs_dev/lib/python3.12/site-packages/numpy/_core/fromnumeric.py:57: FutureWarning: 'DataFrame.swapaxes' is deprecated and will be removed in a future version. Please use 'DataFrame.transpose' instead.
return bound(*args, **kwds)
/home/thoverga/anaconda3/envs/metobs_dev/lib/python3.12/site-packages/numpy/_core/fromnumeric.py:57: FutureWarning: 'DataFrame.swapaxes' is deprecated and will be removed in a future version. Please use 'DataFrame.transpose' instead.
return bound(*args, **kwds)
/home/thoverga/anaconda3/envs/metobs_dev/lib/python3.12/site-packages/numpy/_core/fromnumeric.py:57: FutureWarning: 'DataFrame.swapaxes' is deprecated and will be removed in a future version. Please use 'DataFrame.transpose' instead.
return bound(*args, **kwds)
[3]:
<Axes: title={'center': 'After quality control on temperature observations.'}, xlabel='Timestamps (in UTC)', ylabel='temp (degree_Celsius)'>

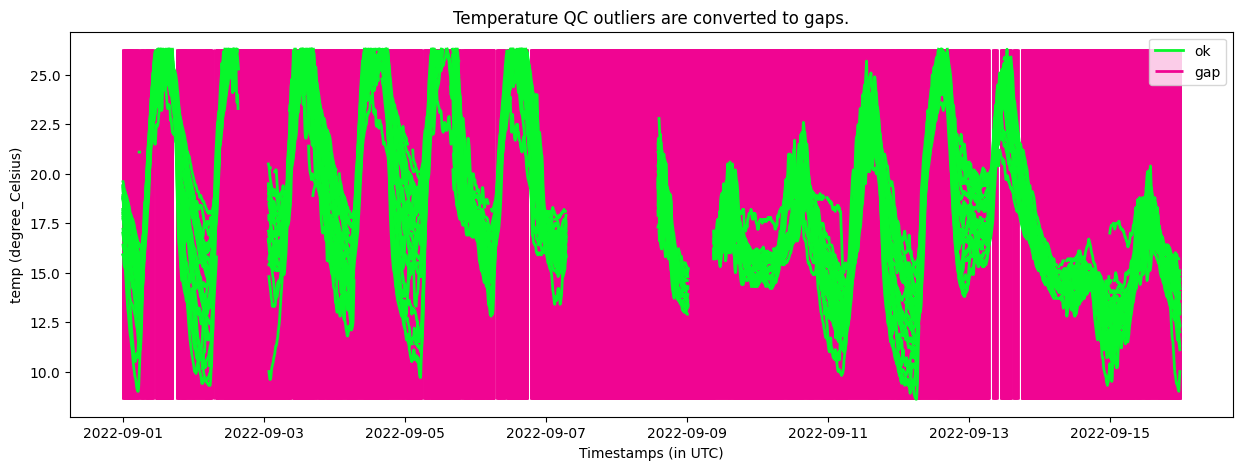

Now we convert all the temperature outliers to gaps.
Note: The outliers are removed, so the QC frequency statistics information is lost.
[4]:
#convert all outliers to gaps
dataset.convert_outliers_to_gaps(obstype='temp')
#Inspect the gaps in a plot
dataset.make_plot(obstype='temp',
colorby='label',
title='Temperature QC outliers are converted to gaps.')
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder01.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder01.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder01.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder01.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder02.!
WARNING:<metobs_toolkit>:Flushing current gaps for temp data of station vlinder02.
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder02.!
WARNING:<metobs_toolkit>:Flushing current gaps for humidity data of station vlinder02.
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder02.!
WARNING:<metobs_toolkit>:Flushing current gaps for wind_speed data of station vlinder02.
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder02.!
WARNING:<metobs_toolkit>:Flushing current gaps for wind_direction data of station vlinder02.
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder03.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder03.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder03.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder03.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder04.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder04.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder04.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder04.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder05.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder05.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder05.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder05.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder06.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder06.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder06.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder06.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder07.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder07.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder07.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder07.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder08.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder08.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder08.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder08.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder09.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder09.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder09.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder09.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder10.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder10.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder10.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder10.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder11.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder11.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder11.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder11.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder12.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder12.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder12.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder12.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder13.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder13.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder13.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder13.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder14.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder14.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder14.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder14.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder15.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder15.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder15.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder15.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder16.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder16.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder16.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder16.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder17.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder17.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder17.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder17.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder18.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder18.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder18.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder18.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder19.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder19.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder19.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder19.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder20.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder20.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder20.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder20.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder21.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder21.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder21.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder21.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder22.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder22.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder22.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder22.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder23.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder23.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder23.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder23.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder24.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder24.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder24.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder24.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder25.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder25.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder25.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder25.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder26.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder26.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder26.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder26.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder27.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder27.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder27.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder27.!
WARNING:<metobs_toolkit>:Outliers are flushed for temp data of station vlinder28.!
WARNING:<metobs_toolkit>:Outliers are flushed for humidity data of station vlinder28.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_speed data of station vlinder28.!
WARNING:<metobs_toolkit>:Outliers are flushed for wind_direction data of station vlinder28.!
[4]:
<Axes: title={'center': 'Temperature QC outliers are converted to gaps.'}, xlabel='Timestamps (in UTC)', ylabel='temp (degree_Celsius)'>
Since there are many gaps, for different stations, it is more clear to plot the time series of as single station.
[5]:
dataset.get_station('vlinder02').make_plot(obstype='temp',
colorby='label')

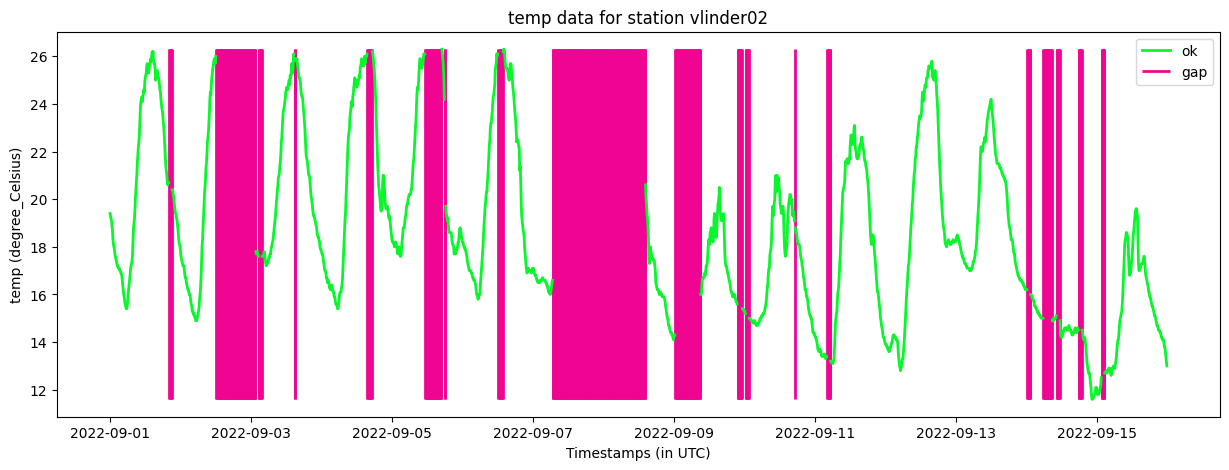

[5]:
<Axes: title={'center': 'temp data for station vlinder02'}, xlabel='Timestamps (in UTC)', ylabel='temp (degree_Celsius)'>
We now have a dataset with gaps that can be filled.
Inspecting a gap in detail#
The gaps are stored as a list of Gap instances, in the SensorData. We can acces them like:
[6]:
#Get one specific gap
specific_gap = (dataset
.get_station('vlinder02') #select a target stations
.get_sensor('temp') #select a target sensordata
.gaps[0] #select the first of the stored gaps
)
specific_gap.get_info()
================================================================================
General info of Gap
================================================================================
--- Gap details ---
Gap of temp for station: vlinder02
-From 2022-09-01 20:10:00+00:00 -> 2022-09-01 21:00:00+00:00
-Duration gap: 0 days 00:50:00
--- Gap filling details ---
-Gap status: unfilled
-Gapfill settings used:
Often it is more convenient to use the gapsdf attribute:
[7]:
dataset.get_station('vlinder02').gapsdf
[7]:
| value | label | details | ||
|---|---|---|---|---|
| datetime | obstype | |||
| 2022-09-01 20:10:00+00:00 | temp | NaN | gap | no details |
| 2022-09-01 20:20:00+00:00 | temp | NaN | gap | no details |
| 2022-09-01 20:30:00+00:00 | temp | NaN | gap | no details |
| 2022-09-01 20:40:00+00:00 | temp | NaN | gap | no details |
| 2022-09-01 20:50:00+00:00 | temp | NaN | gap | no details |
| ... | ... | ... | ... | ... |
| 2022-09-15 01:50:00+00:00 | temp | NaN | gap | no details |
| 2022-09-15 02:00:00+00:00 | temp | NaN | gap | no details |
| 2022-09-15 02:10:00+00:00 | temp | NaN | gap | no details |
| 2022-09-15 02:20:00+00:00 | temp | NaN | gap | no details |
| 2022-09-15 02:30:00+00:00 | temp | NaN | gap | no details |
465 rows × 3 columns
These missing observations are indicated in time series plots as vertical lines:
Fill gaps#
In the toolkit, two groups of methods are implemented: interpolation methods and by making use of external modeldata.
NOTE: In this example, we use a single station (vlinder02) for demonstration. All methods can be directly applied on a Dataset, you do not need to apply this on all stations separately.
Interpolation methods#
The most straightforward method to fill a gap is by using interpolation. Linear interpolation is the best-known form of interpolation, but there are also more advanced forms of interpolation. In the toolkit, we can easily interpolate the gaps by making use of the .interpolate_gaps() method.
[8]:
#apply linear interpolation
dataset.get_station('vlinder02').interpolate_gaps(
target_obstype='temp', #Which gaps to fill
overwrite_fill = True, #Overwrite previous filled values if they are present
method='linear', #which interpolation method
#Limitations:
max_consec_fill=10, #maximum number of consecutive missing records to fill.
)
#make a plot
dataset.get_station('vlinder02').make_plot(
obstype='temp',
colorby='label',
title='Applying linear interpolation to fill the gaps.')
WARNING:<metobs_toolkit>:Cannot interpolate <metobs_toolkit.gap.Gap object at 0x7fe6cdadb560> because the gap is too large (81 records) to be filled with interpolation (and max_consec_fill=10). Increase the max_consec_fill or use another gapfill method.
WARNING:<metobs_toolkit>:Cannot interpolate <metobs_toolkit.gap.Gap object at 0x7fe6cdb19ca0> because the gap is too large (34 records) to be filled with interpolation (and max_consec_fill=10). Increase the max_consec_fill or use another gapfill method.
WARNING:<metobs_toolkit>:Cannot interpolate <metobs_toolkit.gap.Gap object at 0x7fe6cdc06810> because the gap is too large (189 records) to be filled with interpolation (and max_consec_fill=10). Increase the max_consec_fill or use another gapfill method.
WARNING:<metobs_toolkit>:Cannot interpolate <metobs_toolkit.gap.Gap object at 0x7fe6cdc07860> because the gap is too large (52 records) to be filled with interpolation (and max_consec_fill=10). Increase the max_consec_fill or use another gapfill method.
WARNING:<metobs_toolkit>:Cannot interpolate <metobs_toolkit.gap.Gap object at 0x7fe6ce744890> because the gap is too large (18 records) to be filled with interpolation (and max_consec_fill=10). Increase the max_consec_fill or use another gapfill method.

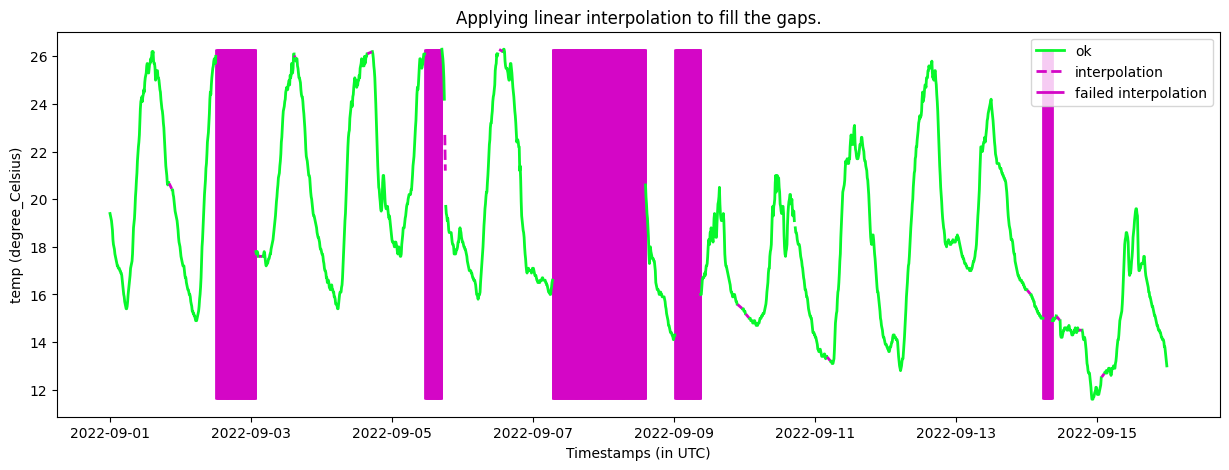

[8]:
<Axes: title={'center': 'Applying linear interpolation to fill the gaps.'}, xlabel='Timestamps (in UTC)', ylabel='temp (degree_Celsius)'>
As you can see, some (small) gaps are filled others are not filled. This is because a filling criteria was not matched (i.g. max_consec_fill=10 will only fill gaps with a gapsize of 100 minutes (for 10min resolution)).
By looking at the .gapsdf , it becomes clear why some gaps could not be filled.
[9]:
dataset.get_station('vlinder02').gapsdf
[9]:
| value | label | details | ||
|---|---|---|---|---|
| datetime | obstype | |||
| 2022-09-01 20:10:00+00:00 | temp | 20.657143 | interpolation | Successful interpolation |
| 2022-09-01 20:20:00+00:00 | temp | 20.614286 | interpolation | Successful interpolation |
| 2022-09-01 20:30:00+00:00 | temp | 20.571428 | interpolation | Successful interpolation |
| 2022-09-01 20:40:00+00:00 | temp | 20.528572 | interpolation | Successful interpolation |
| 2022-09-01 20:50:00+00:00 | temp | 20.485714 | interpolation | Successful interpolation |
| ... | ... | ... | ... | ... |
| 2022-09-15 01:50:00+00:00 | temp | 12.557143 | interpolation | Successful interpolation |
| 2022-09-15 02:00:00+00:00 | temp | 12.585714 | interpolation | Successful interpolation |
| 2022-09-15 02:10:00+00:00 | temp | 12.614285 | interpolation | Successful interpolation |
| 2022-09-15 02:20:00+00:00 | temp | 12.642857 | interpolation | Successful interpolation |
| 2022-09-15 02:30:00+00:00 | temp | 12.671429 | interpolation | Successful interpolation |
465 rows × 3 columns
Higher order interpolation demo#
When using more advanced interpolation methods, often multiple anchors (= the good records that serve as anchor points for the interpolation) are required. In the toolkit we will refer to a leading period and a trailing period, the anchor’s observations before and after the gaps respectively.
Here is an example on applying a polynomial interpolation on gaps.
[10]:
#apply polynomial interpolation
dataset.get_station('vlinder02').interpolate_gaps(
target_obstype='temp',
method='polynomial',
overwrite_fill=False, #the gaps that are already filled are skipped (i.g. chainig GF methods)
n_leading_anchors=3, #at least 3 leading anchors are needed for 3th order polynomial interpolation
n_trailing_anchors=4, #at least 3 trailing anchors are needed for 3th order polynomial interpolation
max_consec_fill=80,
max_lead_to_gap_distance='60min', #the maximum distance (in time) beween the leading anchors and the start of the gap.
method_kwargs={'order':3}, #all extra arguments to pass to the pandas.Dataframe.interpolate method.
)
#make plot
dataset.get_station('vlinder02').make_plot(
obstype='temp',
colorby='label',
title='linear interpolation (small gaps) + 3th-order-polynomial (for medium gaps)')
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdadaf90> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:Cannot interpolate <metobs_toolkit.gap.Gap object at 0x7fe6cdadb560> because the gap is too large (81 records) to be filled with interpolation (and max_consec_fill=80). Increase the max_consec_fill or use another gapfill method.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdb1b680> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdb1aa80> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdb18350> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6da0a3c80> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6da171eb0> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdc06a80> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:Cannot interpolate <metobs_toolkit.gap.Gap object at 0x7fe6cdc06810> because the gap is too large (189 records) to be filled with interpolation (and max_consec_fill=80). Increase the max_consec_fill or use another gapfill method.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdc05340> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdc070e0> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdc06630> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdc060c0> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdc07c50> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6ce7445f0> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6ce747e30> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6ce7463c0> cannot be filled because it already contains filled values, and overwrite fill is False.

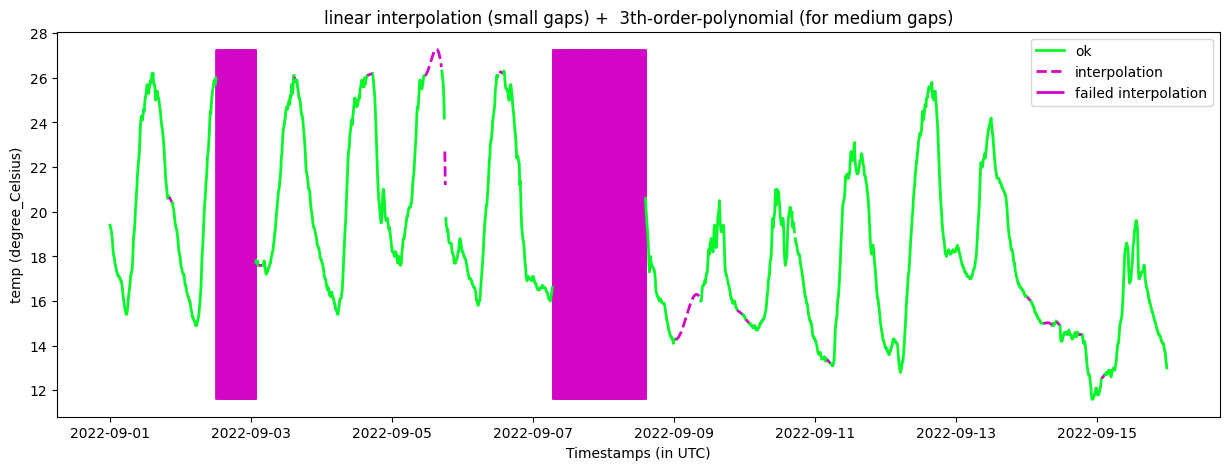

[10]:
<Axes: title={'center': 'linear interpolation (small gaps) + 3th-order-polynomial (for medium gaps)'}, xlabel='Timestamps (in UTC)', ylabel='temp (degree_Celsius)'>

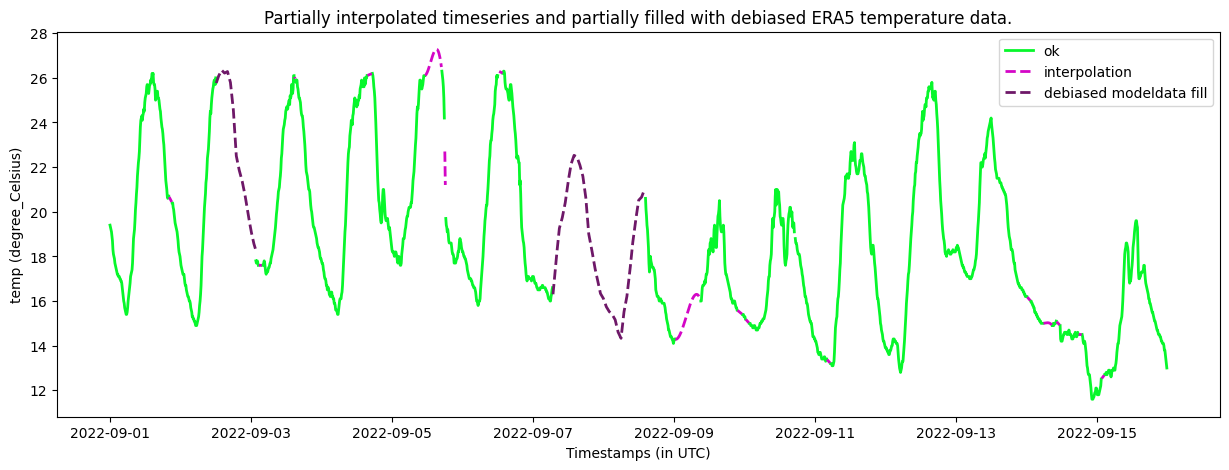

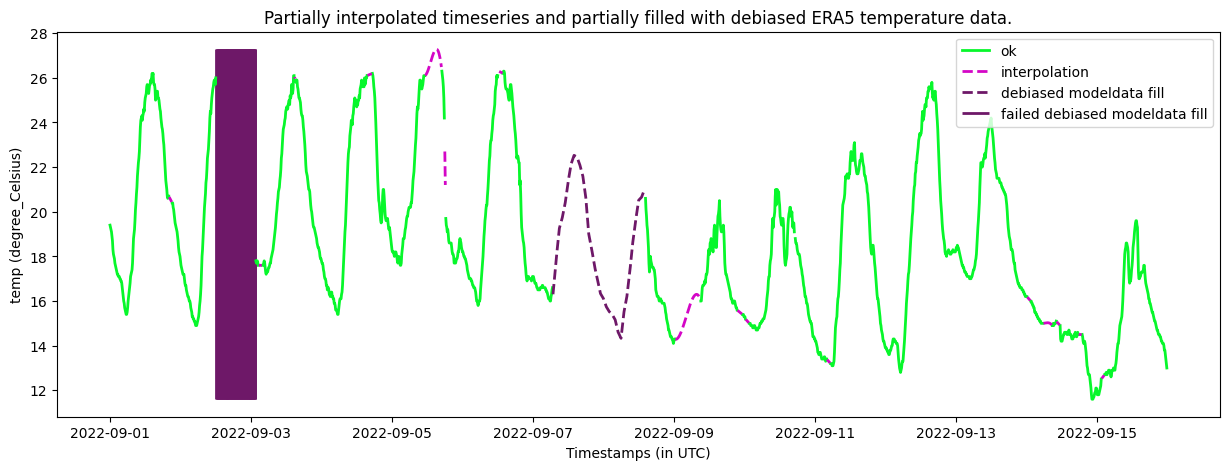

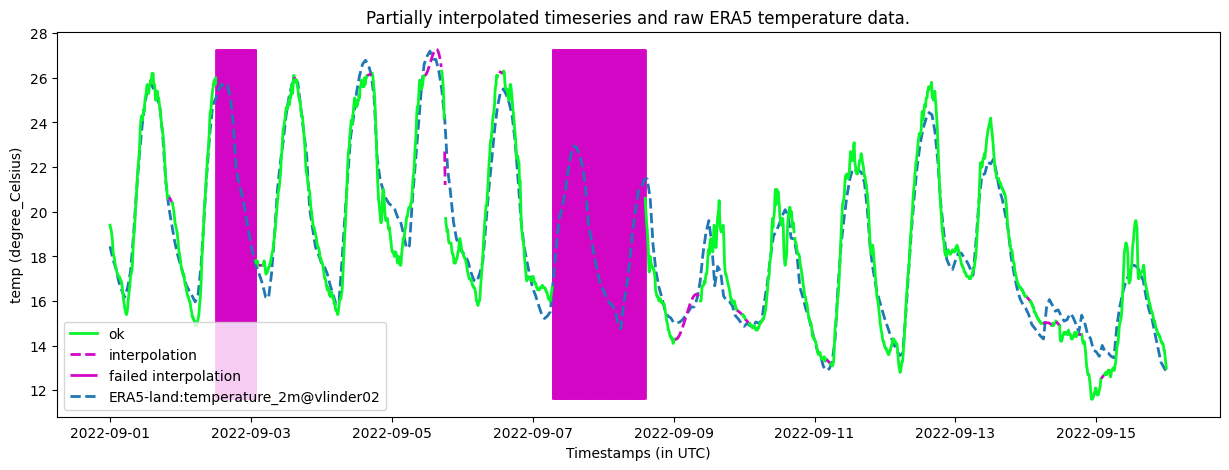

Fill gaps using external modeldata#
Another technique is to use an external source to fill the gaps. In the metobs-toolkit multiple variants of this technique are implemented, from simple to most complex:
.fill_gaps_with_raw_modeldata.fill_gaps_with_debiased_modeldata.fill_gaps_with_diurnal_debiased_modeldata.fill_gaps_with_weighted_diurnal_debias_modeldata
In general all methods use external modeldata and the more complex the method, the more complex the correction on the external modeldata is.
For a detailed description we refer to the API documentation.
As an example we will demonstrate the use of the .fill_gaps_with_debiased_modeldata method. To start, we need to extract external modeldata. We will extract ERA5-land temperature data, as is demonstrated in the GEE example.
[11]:
#Extract ERA5 temperature modedata
era5_manager = metobs_toolkit.default_GEE_datasets['ERA5-land']
#Extract the timeseries
era5_temp = dataset.get_station('vlinder02').get_gee_timeseries_data(
geedynamicdatasetmanager=era5_manager, #The datasetmanager to use
startdt_utc=None,
enddt_utc=None,
target_obstypes=['temp'], #the observationtypes to extract, must be known modelobstypes
force_direct_transfer=True
)
[12]:
#Make a plot for illustration
dataset.get_station('vlinder02').make_plot(
obstype='temp',
colorby='label',
show_modeldata=True,
title='Partially interpolated timeseries and raw ERA5 temperature data.')
[12]:
<Axes: title={'center': 'Partially interpolated timeseries and raw ERA5 temperature data.'}, xlabel='Timestamps (in UTC)', ylabel='temp (degree_Celsius)'>
As we can see, we have external modeldata over the same period as the observations so we can use it to fill the gaps. In the .fill_gaps_with_debiased_modeldata, we specify a leading- and trailing period (a adjacent period before and after the gap with good records). These periods will be used to compute a modelbias, for which the gapfill values will be corrected for.
[13]:
import pandas as pd
#Fill the gaps with debias modeldata
dataset.get_station('vlinder02').fill_gaps_with_debiased_modeldata(
target_obstype='temp',
leading_period_duration=pd.Timedelta('4h'),
min_leading_records_total=20,
trailing_period_duration=pd.Timedelta('4h'),
min_trailing_records_total=20)
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdadaf90> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:Cannot fill <metobs_toolkit.gap.Gap object at 0x7fe6cdadb560> because no valid trailing period can be found.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdb1b680> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdb1aa80> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdb18350> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdb19ca0> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6da0a3c80> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6da171eb0> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdc06a80> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdc07860> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdc05340> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdc070e0> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdc06630> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdc060c0> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdc07c50> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6ce744890> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6ce7445f0> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6ce747e30> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6ce7463c0> cannot be filled because it already contains filled values, and overwrite fill is False.
[14]:
#Make a plot for illustration
dataset.get_station('vlinder02').make_plot(
obstype='temp',
colorby='label',
show_modeldata=False,
title='Partially interpolated timeseries and partially filled with debiased ERA5 temperature data.')
[14]:
<Axes: title={'center': 'Partially interpolated timeseries and partially filled with debiased ERA5 temperature data.'}, xlabel='Timestamps (in UTC)', ylabel='temp (degree_Celsius)'>
As you can see, one of the remaining gaps is successfully filled with the debiased modeldata. One gap is not filled, to see why we inspect the .modeldf attribute.
[15]:
dataset.get_station('vlinder02').gapsdf
[15]:
| value | label | details | ||
|---|---|---|---|---|
| datetime | obstype | |||
| 2022-09-01 20:10:00+00:00 | temp | 20.657143 | interpolation | Successful interpolation |
| 2022-09-01 20:20:00+00:00 | temp | 20.614286 | interpolation | Successful interpolation |
| 2022-09-01 20:30:00+00:00 | temp | 20.571428 | interpolation | Successful interpolation |
| 2022-09-01 20:40:00+00:00 | temp | 20.528572 | interpolation | Successful interpolation |
| 2022-09-01 20:50:00+00:00 | temp | 20.485714 | interpolation | Successful interpolation |
| ... | ... | ... | ... | ... |
| 2022-09-15 01:50:00+00:00 | temp | 12.557143 | interpolation | Successful interpolation |
| 2022-09-15 02:00:00+00:00 | temp | 12.585714 | interpolation | Successful interpolation |
| 2022-09-15 02:10:00+00:00 | temp | 12.614285 | interpolation | Successful interpolation |
| 2022-09-15 02:20:00+00:00 | temp | 12.642857 | interpolation | Successful interpolation |
| 2022-09-15 02:30:00+00:00 | temp | 12.671429 | interpolation | Successful interpolation |
465 rows × 3 columns
We see that the issue is too few trailing records (17 found but 20 required in a 4-hour period). You can verify this by looking in the .df attribute of the station to see that this is true. You can also see this in the timeseries plot if you zoom in to the trailing period, that there is a interpolated gap (insert %matplotlib qt in the cell with the .make_plot() call to use the zoom-tool.)
Note that successful interpolated records are not included in the trailing period.
In order to solve this, we can lessen the restriction for the trailing period.
[16]:
#Fill the gaps with debias modeldata
dataset.get_station('vlinder02').fill_gaps_with_debiased_modeldata(
target_obstype='temp',
leading_period_duration=pd.Timedelta('4h'),
min_leading_records_total=20,
trailing_period_duration=pd.Timedelta('4h'),
min_trailing_records_total=15) #lessened restriction 20 -> 15
#Make a plot for illustration
dataset.get_station('vlinder02').make_plot(
obstype='temp',
colorby='label',
show_modeldata=False,
title='Partially interpolated timeseries and partially filled with debiased ERA5 temperature data.')
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdadaf90> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdb1b680> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdb1aa80> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdb18350> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdb19ca0> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6da0a3c80> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6da171eb0> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdc06a80> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdc06810> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdc07860> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdc05340> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdc070e0> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdc06630> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdc060c0> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6cdc07c50> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6ce744890> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6ce7445f0> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6ce747e30> cannot be filled because it already contains filled values, and overwrite fill is False.
WARNING:<metobs_toolkit>:<metobs_toolkit.gap.Gap object at 0x7fe6ce7463c0> cannot be filled because it already contains filled values, and overwrite fill is False.
[16]:
<Axes: title={'center': 'Partially interpolated timeseries and partially filled with debiased ERA5 temperature data.'}, xlabel='Timestamps (in UTC)', ylabel='temp (degree_Celsius)'>
